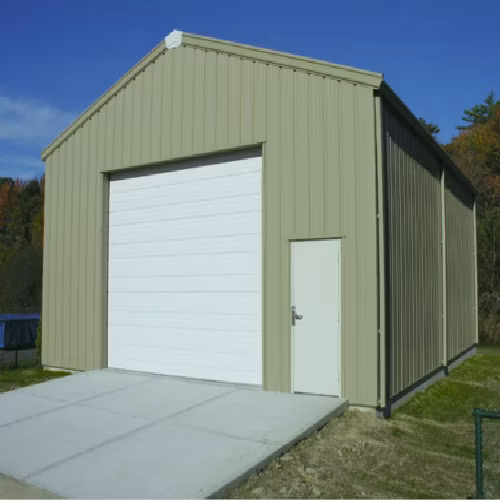

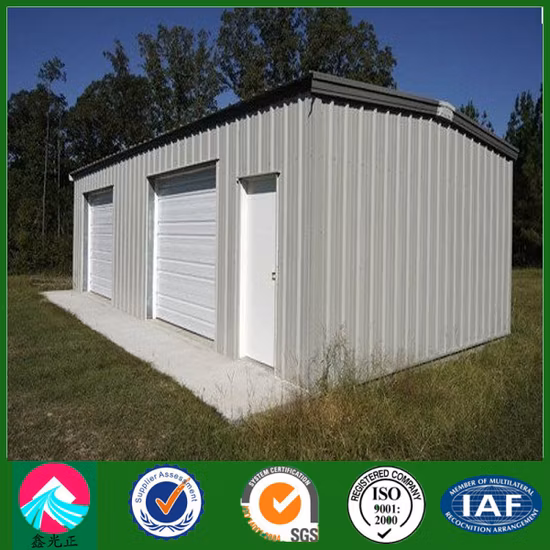

Corrugated Steel Container House for Car Garage

Basic Info

Model NO.	jedha-331
Roof Structure	Double Slope Roof
Floor	Moisture-Proof MGO Floor
Frame Color Options	Dark Grey, White Grey, Red, Blue. Wall Panel Color
Length Options	23FT/26FT/30FT
Width Options	2438mm
Transport Package	Sea Worth Packing
Specification	605830252591mm
Trademark	Jedha
Origin	China
HS Code	9406900090
Production Capacity	500 PCS/Month

Product Description

Jedha container house standard size is 6058*3025*2591mm. It's frame uses Q355 low alloycarbon structural steel, hot-dip galvanized 100g/m. Material advantage is cold-rolling forming, highstrengthen structure and light weight with economical price. Because of the detachable packing way ofthe container frames, there are a lot of size options and the transportation cost is low. Clients caninstall manually without large cranes or equipments

n
Contaner Frame	Q355B low carbon structural steel with hot dip galvanizing 100g/m2. After welding, the integral frameuses electrostatic powder spraying(100um). Frames use detachable compoments delivery and install insite.
Roof Panel	70mm rock wool sandwich panel, density is 120kg/m3. The steel sheet is with double-side coloredsteel sheet, upper sheet is 0.45mm, color white grey. Lower sheet is 0.40mm, color is milky white.Steel sheet is Aluminum Zinc galvanized 50g/m2+ PE baking finish 15/5um.
Column	3.0mm thick Q355B steel,210x150mm
Wall Panel	75mm EPS sandwich panel, EPS density:12kg/m3. Panel thickness option is 50mm,60mm,100mm, material option is PU (density 40kg/m3) , rock wool( density 120kg/m3).Colored steel sheet is 0.40m. Panel's outside is color-optional with ribs, inside is milky white . Thesteel sheet surface is Aluminum Zinc galvanized 50g/m2+ PE baking finish 15/5um.
Floor	1.8mmPVC floor(color option: blue spot/wood grain)+18mm cement fiber board
Door	960x2080mm Steel Door
Window	980x1150mm PVC single glass sliding window (with screen window inside).Option: Aluminum alloy window; adding wind-proof rolling shutter
ElectrictyStandard	LED ceiling lamp: 2pcs x 30w LED ceiling lamps, L=1200mm Switch: 1pc xsingle control switch (national standard rocker single control) Socket: 2pcsx10A sockets, 1pc x32A 3-level outdoor waterproof inlet socket. Option: adding airconditioner socket Distribution box: 1pcx 8-circuit power distribution box, built-in 1pc x2P32A total circuit breaker (withleakage protection), 1pcx 1P lighting circuit, 1pc x1P socket circuit
BathroomStandard	This container house does not contain bathroom part. If adding drainage and inlet system, pipes areopen-mounted, lower sewage pipe are concealed

Corrugated Steel Container House for Car Garage

Technical Parameter:Wind Resistance:Grade 12Wall permitted loading:0.6KN/ m2Ceiling Permitted live loading:0.5 KN/m2Wall Coefficient of thermal conductivity:K=0.442W/mkCeiling Coefficient of thermal conductivity:K=0.55W/ m2K
